2134mm arm span 13kg loading 6-axis industrial Painting Robot BRTIRSE2013A for spraying painting
Product features

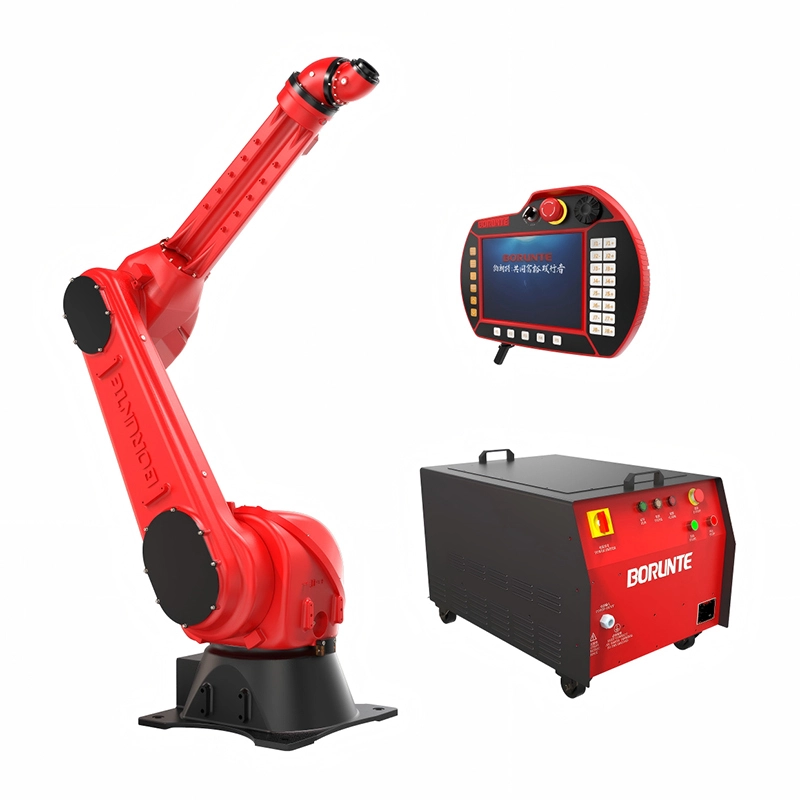

BRTIRSE2013A is a six axis robot developed by BORUNTE for spraying Painting, it has 2134mm arm span and 13kg loading ability. This robot has a compact structure, high flexibility, and advanced technology, which can be applied to a wide range of spraying industries and accessory handling fields.
● High IP code: IP65 dust-proof and water-proof.
● High accuracy: Repeated positioning accuracy: ±0.5mm.
Application of BRTIRSE2013A
(1). Spraying Painting, etc.
Product parameters
|
Model |
BRTIRSE2013A |
||||||||||
|
Axes |
6 axis |
||||||||||
|
Loading ability |
13kg |
||||||||||
|
IP code |
IP65 dust-proof and water-proof |
||||||||||
|
Repeated positioning accuracy |
±0.5 mm |
||||||||||
|
Maximum arm span |
2134 mm |
||||||||||
|
Weight |
385 kg |
||||||||||
|
Max speed |
J1 |
101.4°/s |
J2 |
105.6°/s |
|||||||
|
J3 |
130.49°/s |
J4 |
368.4°/s |
||||||||
|
J5 |
415.38°/s |
J6 |
545.45°/s |
||||||||
|
Motion range |
J1 |
±162.5° |
J2 |
±124° |
|||||||
|
J3 |
-57°~+237° |
J4 |
±180° |
||||||||
|
J5 |
±180° |
J6 |
±360° |
||||||||
|
Allowable torque |
J4 |
15N*m |
J5 |
25.24N*m |
J6 |
25.563N*m |
|||||
|
Allowable moment of inertia |
J4 |
0.262kg*m2 |
J5 |
0.542kg*m2 |
J6 |
0.395kg*m2 |
|||||
|
Mounting environment |
Operating temperature： 0℃~40℃ |
Mpa |
0.5~0.7MPa |
||||||||
|
Power supply |
220V±10% 50Hz/60Hz |
||||||||||
|
|
|
||||||||||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
|||||||
|
Casting body |
BORUNTE |
||||||||||
|
BORUNTE |
|||||||||||
|
Reducer |
BORUNTE |
||||||||||
|
Electrical component |
BORUNTE |
||||||||||
|
Oil content |
J1 |
2000ML |
J2 |
2000ML |
J3 |
900ML |
|||||
|
J4 |
550ML |
J5 |
550ML |
J6 |
150ML |
||||||
|
Vulnerable parts |
None |
||||||||||
|
Robot accompanying materials |
USB |
||||||||||
Dimensional drawing
Product application
BRTIRSE2013A air fixed-point spraying
