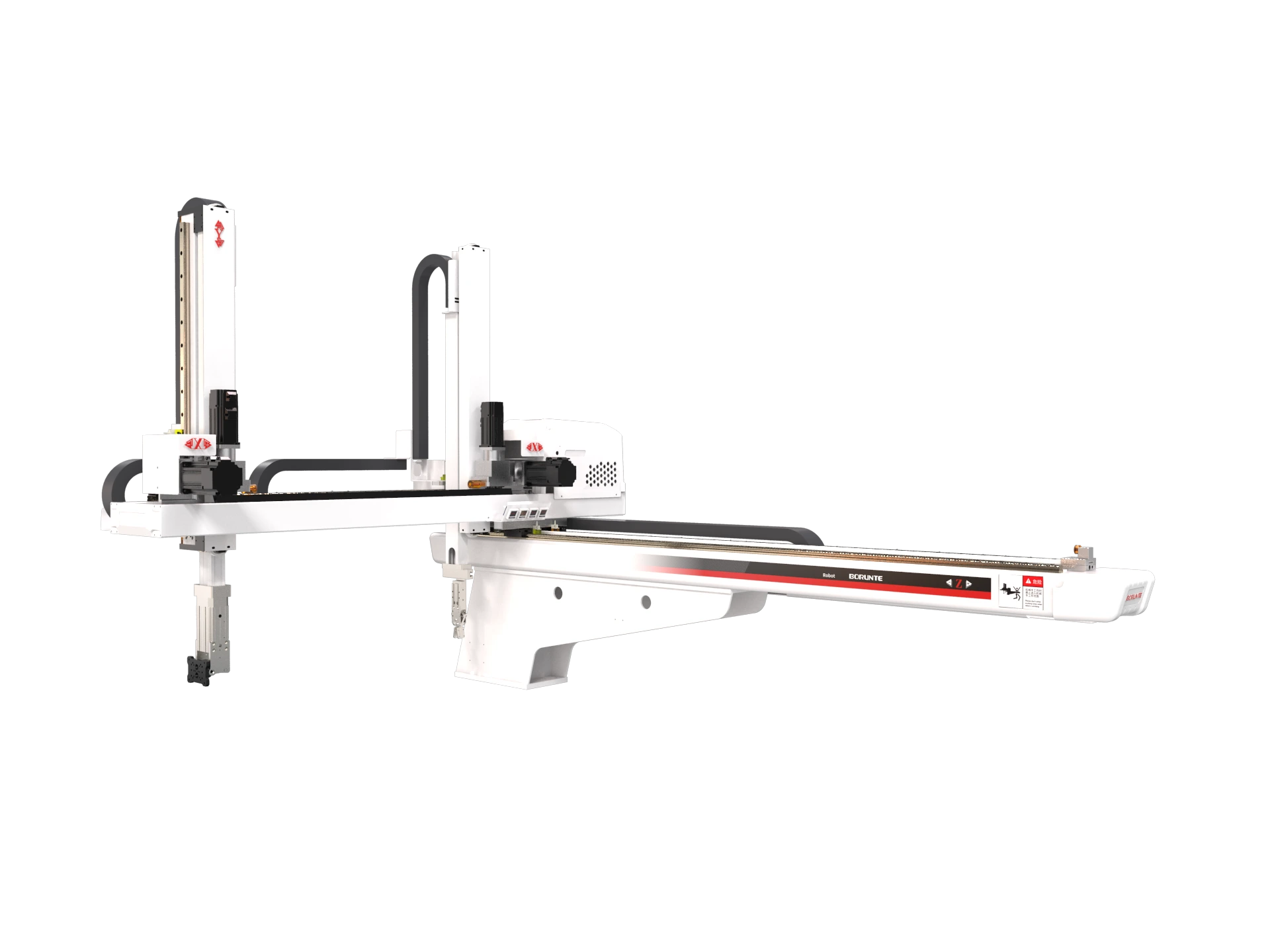

5-axis servo injection molding robot BRTR11WDS5PC for molding machines 320T-470T
Product features
The BRTR11WDS5PC series is suitable for various horizontal injection molding machines of 320T-470T, including finished products and water outlet extraction, arm form double section, double arm, five axis AC servo drive. It can be applied to special product applications such as quick extraction or in mold pasting, in mold inserts, etc. It has precise positioning, fast speed, long service life, low failure rate, and can increase production capacity (10-30%) by installing a robotic arm, reducing product defect rate, ensuring operator safety, reducing labor, accurately controlling production volume, reducing waste, and ensuring delivery time. Five axis drive control integrated control system: with fewer signal lines, long-distance communication, good expansion performance, strong anti-interference ability, high repeat positioning accuracy, can control multiple axes simultaneously, simple equipment maintenance, and low failure rate.
Product parameters
|
BRTR11WDS5PC technical specifications |
||||||||||||||||||||||||
|
Power sourse(Kva) |
Power Supply |
Recommended |
Drive |
Traverscr |
Crosswisc |
Vertical |
Stand-by station |
Max |
Cyele time (s) |
Dry take |
Am model |
Model of |
Angel |
Working air |
Air |
Positiong |
Complete machine size (mm) |
Net weight(kg) |
||||||
|
4.6 |
220 |
320-470 |
AC servo |
1700 |
P:750 |
1100 |
P:165 |
10 |
7.2 |
2.49 |
Double arm |
Four suctions |
90° |
0.5-0.6 |
4 |
±0.05 |
2342*1564*1426.5
|
255 |
||||||
|
transverse |
Crosswise |
Obverse arm |
Deputy arm |
|||||||||||||||||||||
|
Transverse |
Reducer |
Slide rail |
Gear rack/ |
Electrical |
Reducer |
Slide rail |
Gear rack / |
air |
Electrical |
Reducer |
Slide rail |
Gear rack/Belt |
Air |
electrical |
Reducer |
Slide rail |
Gear rack |
Air cylinder |
||||||
|
1000W |
750W |
25mm |
belt: |
400W*2 |
400W*2 |
20mm |
gear:20mm |
/ |
1000W |
750W |
25mm |
Belt: |
/ |
750W |
750W |
20mm |
belt: |
/ |
||||||
The above-mentioned cycle time are the results of our company's internal test standard. In the actual application process of the machine, they will vary according to the actual operation.
Product application
5-axis servo injection molding robot BRTR11WDS5PC, main arm takes out injection molded parts, auxiliary arm
shears water port
