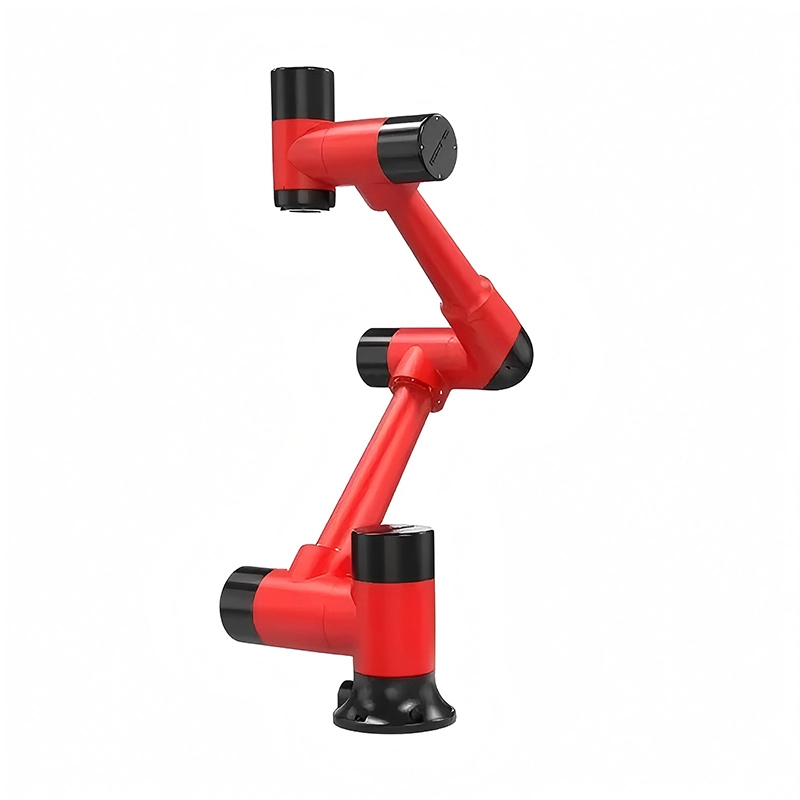

BRTIRXZ0805A 6-Axis 5kg Payload 931mm Collaborative Robot For Loading Unloading And Assembly
Product features
BRTIRXZ0805A is a six axis collaborative robot with drag teaching function developed by BORUNTE, it has 5kg loading ability and 931.5mm arm span. It has collision detection and trajectory reproduction functions and also has the characteristics of safety, efficiency, intelligence, ease of use, flexibility, lightness, economic reliability, and low power consumption, greatly meeting the needs for human-machine cooperation. Its high sensitivity and fast response can be applied to high-density flexible production lines and can be used in product packaging, injection molding, loading and unloading, assembly and other operations, especially for the application needs of human-machine collaborative work.
● High IP code: IP50
● High accuracy: repeated positioning accuracy: ±0.05mm
Application of BRTIRXZ0805A
(1). transporting (2). loading and unloading, etc.
Product parameters
|
Model |
BRTIRXZ0805A |
||||||||||||
|
Axes |
6 axis |
||||||||||||
|
Loading ability |
5kg |
||||||||||||
|
IP code |
IP50 |
||||||||||||
|
Repeated positioning accuracy |
±0.05mm |
||||||||||||
|
Maximum arm span |
931.5mm |
||||||||||||
|
Weight |
28kg |
||||||||||||
|
Max speed |
J1 |
180°/s |
J2 |
180°/s |
|||||||||
|
J3 |
180°/s |
J4 |
180°/s |
||||||||||
|
J5 |
180°/s |
J6 |
180°/s |
||||||||||
|
Motion range |
J1 |
±180° |
J2 |
±90° |
|||||||||
|
J3 |
-70°~+240° |
J4 |
±180° |
||||||||||
|
J5 |
±180° |
J6 |
±360° |
||||||||||
|
Allowable torque |
J4 |
19.2 N*m |
J5 |
19.2 N*m |
J6 |
19.2 N*m |
|||||||
|
Allowable torque |
J4 |
0.54*10-4kg*m2 |
J5 |
0.54*10-4kg*m2 |
J6 |
0.54*10-4kg*m2 |
|||||||
|
Mounting environment |
Operating temperature： 0℃~40℃ |
MPa |
0.5~0.7MPa |
||||||||||
|
Power supply |
Control cabinet AC： |
||||||||||||
|
Core component |
Name |
Operating system |
Brand |
BORUNTE |
|||||||||
|
Casting body |
BORUNTE |
||||||||||||
|
BORUNTE |
|||||||||||||
|
Reducer |
BORUNTE |
||||||||||||
|
Electrical component |
BORUNTE |
||||||||||||
|
Oil content |
None |
||||||||||||
|
Vulnerable |
None |
||||||||||||
|
Robot accompany materials |
USB |
||||||||||||
|
Model |
BRTIRXZ0805A |
||||||||||||
|
Axes |
6 axis |
||||||||||||
Dimensional drawing
Product application
6-Axis Collaborative Robot BRTIRXZ0805A Collaborates with Mobile Phone for Indoor Automatic Shooting Tasks
