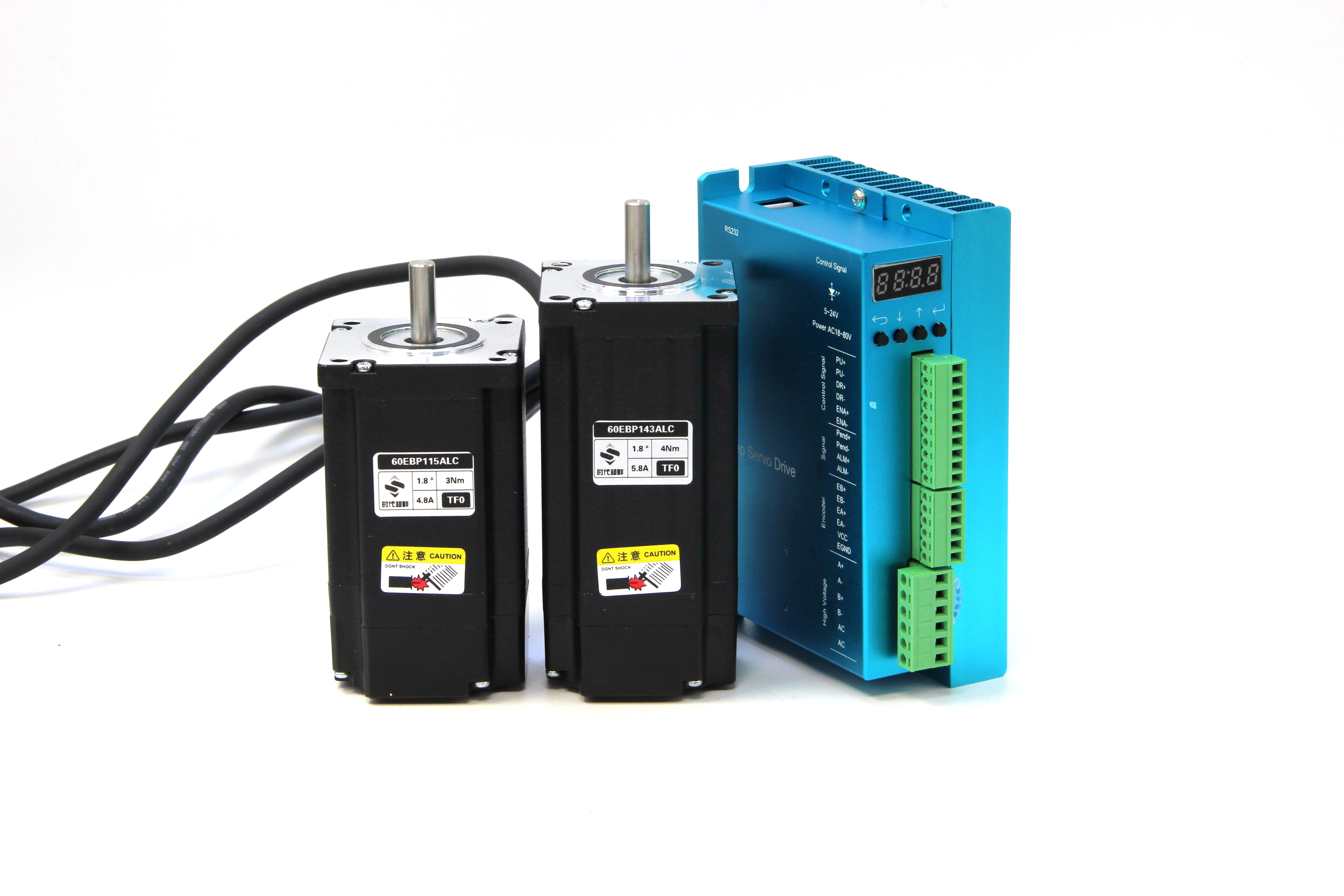

closed loop stepper motor nema 24 3nm/4nm with driver 60EBP+ZDM-2HA865

Product features

Nema 24 closed loop stepper motor is a high-performance closed-loop drive component developed for industrial automation, perfectly integrating the advantages of easy operation and affordable cost of stepper motors, as well as the core features of high-precision and high stability closed-loop control. The product is equipped with a high-precision encoder, which can achieve real-time feedback of rotor position and automatic correction of deviation, solving the industry pain points of traditional open-loop stepper motors that are prone to step loss, low-speed shaking, and high-speed step loss from the root.

● Core adaptation advantages:

The most prominent adaptation advantage of this motor is that the installation hole position is completely consistent with the standard nema 23 closed loop stepper motor, without the need to modify the original installation structure of the equipment, customize the installation bracket, or adjust the transmission fitting size. It can directly replace the existing nema 23 closed loop stepper motor, quickly complete the equipment performance upgrade, whether it is the iteration upgrade of existing equipment or the replacement selection of new models, it can achieve seamless adaptation, balancing universality and upgrade convenience.

● Torque configuration:

This nema 24 closed loop stepper motor can compensate for the insufficient load capacity of conventional nema 23 closed loop stepper motors. It comes standard with two rated torque specifications of 3Nm and 4Nm. The static holding torque and dynamic operating torque of both models are superior to the full range of conventional nema 23 closed loop stepper motors on the market. With similar installation volumes, it can achieve torque jumps and easily meet the transmission requirements of heavier loads.

Product advantages

● Closed loop control performance: Built in high-resolution encoder, real-time feedback of rotor position, achieving precise positioning with small positioning error and high repeat positioning accuracy, balancing the cost-effectiveness of stepper motors with the control accuracy of servo motors.

● Operating characteristics: low noise, low vibration, low heat generation, strong stability for long-term continuous operation, compatible with mainstream closed-loop stepper drivers, simple wiring, convenient debugging, and extremely strong compatibility.

● Applicable fields: Widely used in various automation equipment that require precision transmission, such as CNC engraving machines, precision cutting machines, automated production lines, robot joints, medical equipment, packaging machinery, 3D printers, testing instruments, etc.

NEMA 24 closed-loop stepper motor, torque 3nm style，parameter and size

NEMA 24 closed-loop stepper motor, torque 4nm style，parameter and size

stepper motor driver zdm-2ha865 parameters

Product Manual
