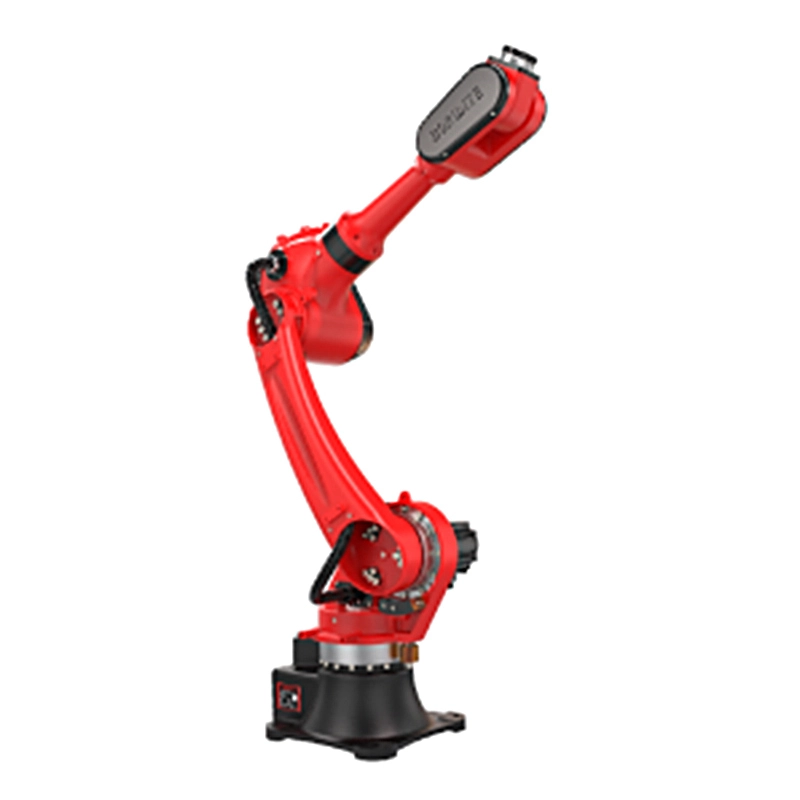

Six Axis Automated Palletizing Robot BRTIRUS1820A 1800mm Arm Span 20kg Payload
Product features
The BRTIRUS1820A is a 6-axis robot developed by BORUNTE for complex multi-degree-of-freedom applications. It boasts a maximum payload of 20kg and a maximum arm span of 1850mm.
Adopting a lightweight arm design with a compact and streamlined mechanical structure, it enables flexible operation in confined workspaces even during high-speed movement, meeting the demands of flexible production. With the flexibility of six degrees of freedom, it excels in a wide range of scenarios including loading & unloading, injection molding, die casting, assembly, gluing, grinding and inspection. It is suitable for injection molding machines ranging from 500T to 1300T.
● High Protection Grade: Wrist IP54, Main Body IP40
● High Precision: Repeat Positioning Accuracy of ±0.05mm
1.2 Application Scenarios of BRTIRUS1820A Robot
(1) Material Handling (2) Stamping (3) Injection Molding (4) Grinding (5) Cutting
(6) Deburring (7) Gluing (8) Palletizing (9) Spraying, etc.
Product parameters
|
Item |
Specification |
|
Model |
BRTIRUS1820A |
|
Axis Count |
6-axis |
|
Payload Capacity |
20kg |
|
Protection Grade |
Main Body: IP40; Wrist: IP54 |
|
Repeat Positioning Accuracy |
±0.05mm |
|
Max Arm Span |
1850mm |
|
Weight |
230kg |
|
Max Speed (J1-J6) |
110.2°/s, 140.5°/s, 133.9°/s, 272.7°/s, 240°/s, 375°/s |
|
Motion Range (J1-J6) |
±155°, -140°/+65°, -75°/+110°, ±180°, ±115°, ±360° |
|
Operating Environment |
Temperature: 0°C~40°C; Humidity: 20%~80% (no condensation) |
|
Pneumatic Pressure |
0.5~0.7MPa |
|
Power Supply |
220V±10%, 50Hz/60Hz |
|
Core Components |
Servo motor, reducer, controller (all BORUNTE brand); Casting body |
Dimensional drawing
Product application
BRTIRUS1820A Robot-Connected Automatic Press Brake for Sheet Metal Loading & Unloading
BRTIRUS1820A with Floating Spindle for Special-Shaped Part Grinding
