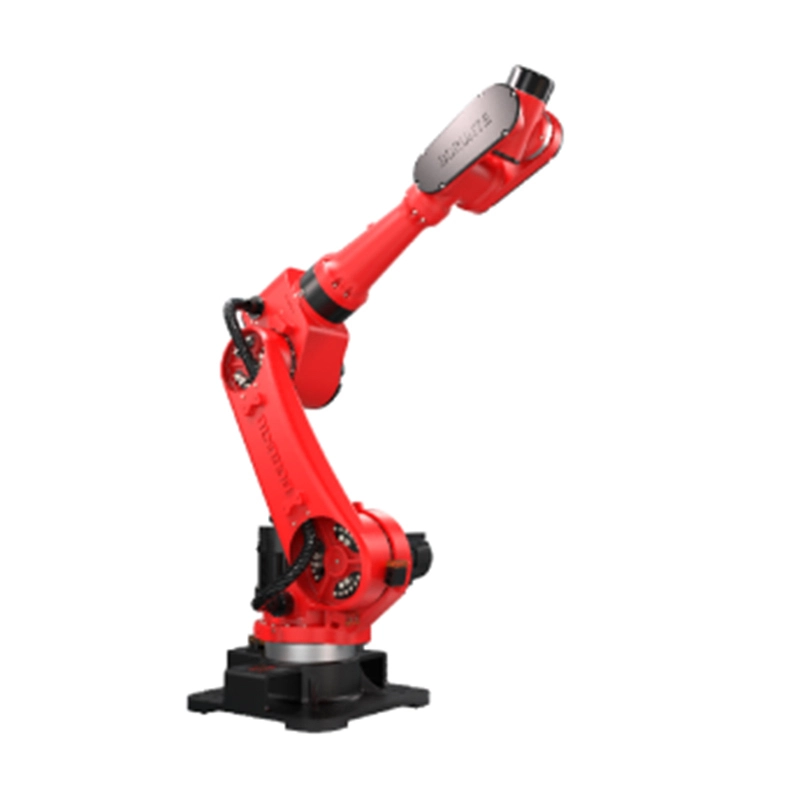

Six Axis Industrial Automated Palletizing Robot BRTIRUS2550A 2563mm Arm Span 50kg Payload
Product features
The BRTIRUS2550A is a 6-axis robot developed by BORUNTE for complex multi-degree-of-freedom applications. It features an ultra-long arm span of 2563mm and a maximum payload capacity of 50kg. With the flexibility of six degrees of freedom, it handles various tasks with ease, including loading & unloading, assembly, and injection molding.
● High Protection Grade: Wrist IP54, Main Body IP40
● High Precision: Repeat Positioning Accuracy of ±0.1mm
1.2 Application Scenarios of BRTIRUS2550A Robot
(1) Material Handling (2) Stamping (3) Injection Molding (4) Grinding (5) Cutting
(6) Deburring (7) Gluing (8) Palletizing (9) Spraying, etc.
Product parameters
|
Item |
Specification |
|
Model |
BRTIRUS2550A |
|
Axis Count |
6-axis |
|
Payload Capacity |
50kg |
|
Protection Grade |
Main Body: IP40; Wrist: IP54 |
|
Repeat Positioning Accuracy |
±0.1mm |
|
Max Arm Span |
2563mm |
|
Weight |
~725kg |
|
Max Speed (J1-J6) |
84°/s, 52°/s, 52°/s, 245°/s, 223°/s, 223°/s |
|
Motion Range (J1-J6) |
±160°, ±70°, -75°/+115°, ±180°, ±125°, ±360° |
|
Allowable Torque (J4-J6) |
153N·m, 153N·m, 100N·m |
|
Allowable Moment of Inertia (J4-J6) |
28kg·m², 28kg·m², 11kg·m² |
|
Operating Environment |
Temperature: 0°C~40°C (optimal: 15°C~25°C); Humidity: 20%~80% (no condensation) |
|
Pneumatic Pressure |
0.5~0.7MPa |
|
Power Supply |
380V±10%, 50Hz/60Hz |
|
Core Components |
Operating system, casting body, servo motor, reducer, controller (all BORUNTE) |
|
Grease Capacity (J1-J6) |
2000ML, 2000ML, 700ML, 600ML, 200ML, 200ML |
Dimensional drawing
Product application
