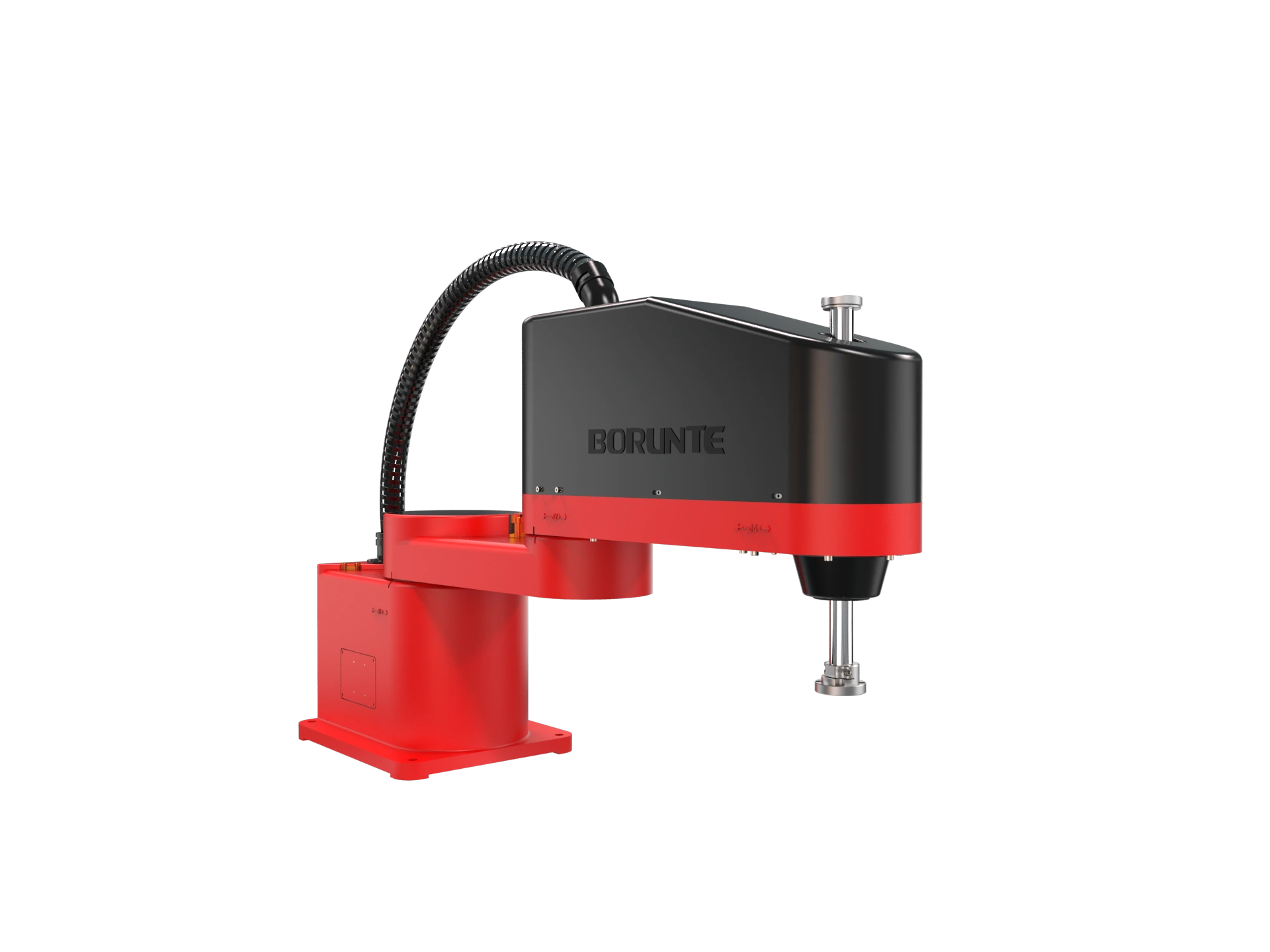

material handling manipulators 10kg load 800mm arm span BRTIRSC0810A
Product features
BRTIRSC0810A is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term tasks. It has a 800mm arm span and a maximum load of 10kg. It has multiple degrees of flexibility and is mainly used in fields such as printing and packaging, metal processing, light textile home furnishings, electronic equipment, etc.
● High accuracy: Repeated positioning accuracy: ±0.05mm.
Application of BRTIRSC0810A
(1). sorting (2). transporting, etc.
Product parameters
|
Model |
BRTIRSC0810A |
|||||
|
Axes |
4 axis |
|||||
|
Loading ability |
10kg |
|||||
|
Repeated positioning accuracy |
±0.05mm |
|||||
|
Maximum arm span |
800mm |
|||||
|
Weight |
73kg |
|||||
|
Max speed |
J1 |
300°/s |
J2 |
473.5°/s |
||
|
|
J3 |
1134mm/s |
J4 |
1875°/s |
||
|
Motion range |
J1 |
±130° |
J2 |
±140° |
||
|
|
J3 |
180mm |
J4 |
±360° |
||
|
Maximum rotational torque |
J3 |
16.256N*m |
J4 |
1.016N*m |
||
|
Maximum moment of inertia |
J3 |
0.0286kg*m2 |
J4 |
0.0001kg*m2 |
||
|
Mounting environment |
Operating temperature： 0℃~40℃ Best temperature：25℃~40℃ Humidity：20~80%RH（No condensation） |
Mpa |
0.5~0.7MPa |
|||
|
|
|
Power supply |
220V±10％ 50Hz/60Hz |
|||
|
|
|
|
|
|||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
||
|
|
|
Casting body |
|
BORUNTE |
||
|
|
|
|
BORUNTE |
|||
|
|
|
Reducer |
|
BORUNTE |
||
|
|
|
Electrical component |
|
BORUNTE |
||
|
Oil content |
J1 |
700ML |
J2 |
400ML |
J3 |
/ |
|
Vulnerable parts |
Timing belt |
Tooth shape 5M, 108 teeth, 9mm wide |
||||
|
|
Timing belt |
Tooth shape 5M, 148 teeth, 9mm wide |
||||
|
|
Timing belt |
Tooth shape 5M, 104 teeth, 15mm wide |
||||
|
Robot accompanying materials |
USB |
|||||
Dimensional drawing
Product application
BRTIRSC0810A is used for small bottle handling and loading/unloading
