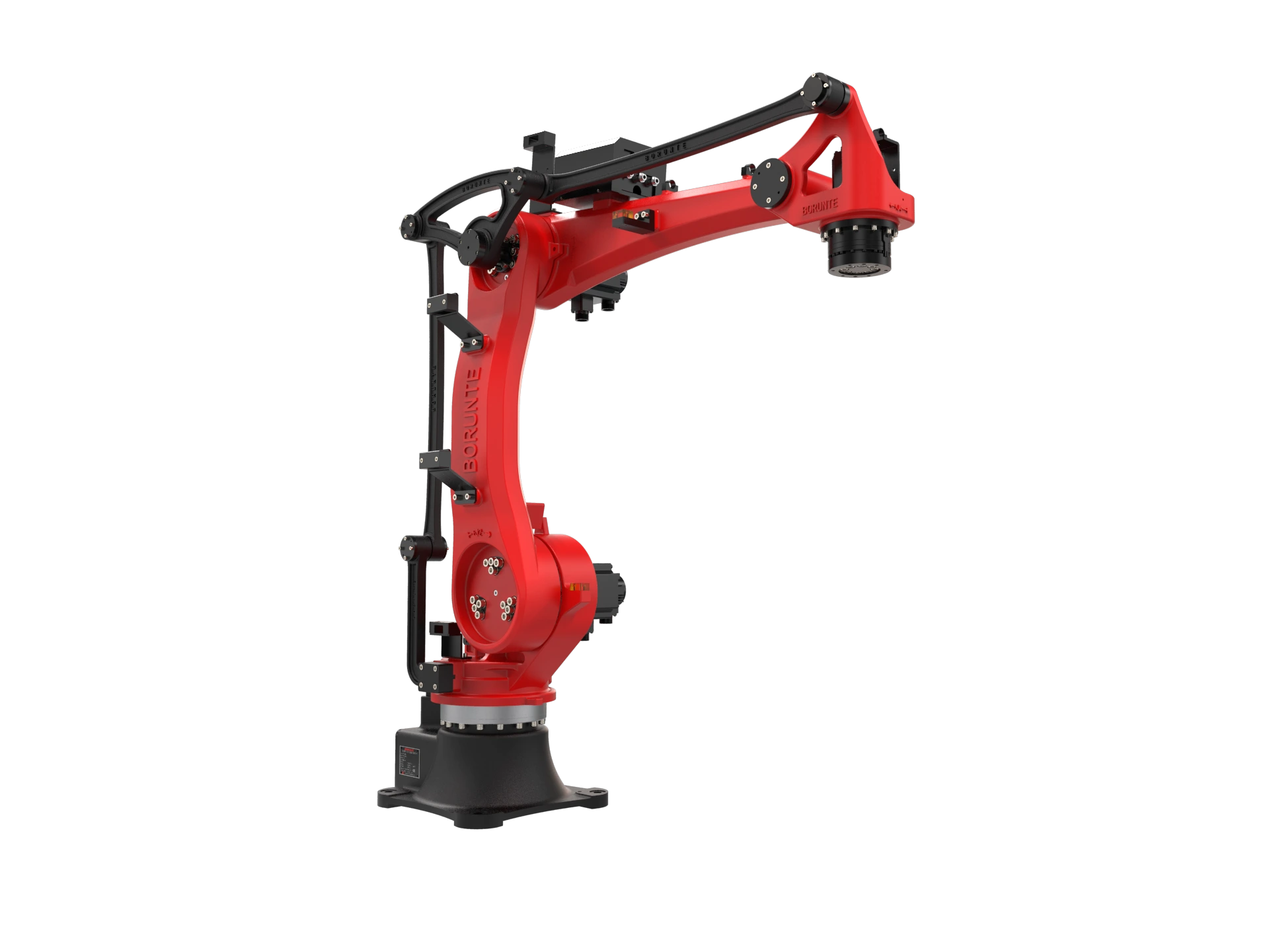

robotic bag palletizer 25kg load 1800mm arm span BRTIRPZ1825A
Product features
BRTIRPZ1825A is a four axis robot developed by BORUNTE for certain monotonous, frequent, and repetitive long-term operations, as well as hazardous and harsh environments. It has an arm span of 1800mm and a maximum load of 25kg. With multiple degrees of flexibility, it can be used in loading and unloading, handling, unstacking, and stacking.
● High accuracy: Repeated positioning accuracy: ±0.08mm.
Application of BRTIRPZ1825A
(1). stamping (2). palletizing (3). loading and unloading, etc.
Product parameters
|
Model |
BRTIRPZ1825A |
|||||||
|
Axes |
4 axis |
|||||||
|
Loading ability |
25kg |
|||||||
|
Repeated positioning accuracy |
±0.08mm |
|||||||
|
Maximum arm span |
1800mm |
|||||||
|
Weight |
256kg |
|||||||
|
Max speed |
J1 |
175°/s |
J2 |
135°/s |
||||
|
|
J3 |
123°/s |
J4 |
300°/s |
||||
|
Motion range |
J1 |
±155° |
J2 |
-78°/+30° |
||||
|
|
J3 |
-62°/+ 70° |
J4 |
±360° |
||||
|
|
R34 |
65°~170° |
/ |
/ |
||||
|
Allowable torque |
J4 |
62.3N*m |
|
|
||||
|
Allowable moment of inertia |
J4 |
0.145KG*m² |
|
|
||||
|
Mounting environment |
Operating temperature： 0℃-40℃ Best temperature：15℃-25℃ Relative humidity：20-80%RH（No condensation） |
Mpa |
0.5~0.7MPa |
|||||
|
|
|
Power supply |
220V±10％ 50HZ/60Hz |
|||||
|
|
|
|
|
|||||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
||||
|
|
|
Casting body |
|
BORUNTE |
||||
|
|
|
|
BORUNTE |
|||||
|
|
|
Reducer |
|
BORUNTE |
||||
|
|
|
Electrical component |
|
BORUNTE |
||||
|
RV Oil content |
J1 |
1700ML |
J2 |
860ML |
J3 |
660ML |
||
|
|
J4 |
/ |
|
|
|
|
||
|
Vulnerable parts |
None |
|||||||
|
Robot accompanying materials |
USB |
|||||||
Dimensional drawing
Product application
Application of BRTIRPZ1825A in parts handling
