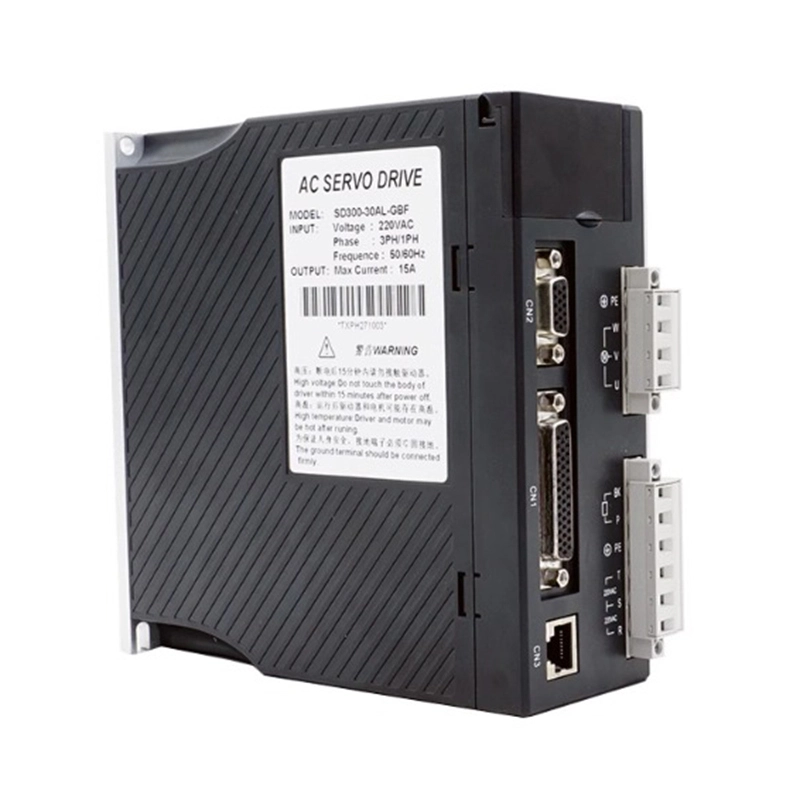

SD300 Series AC Servo Motor And Driver integrating 2500-line optical encoder With RS485 Communication
Product features
The SD300 Series from Times Brilliant is a high-performance AC servo solution integrating 2500-line optical encoder servo motors with matched drivers, featuring RS485 communication for seamless industrial integration.
Designed to meet diverse automation needs, the series offers a comprehensive range of configurations across flange sizes (60mm, 80mm, 90mm, 110mm, 130mm), power ratings (200W to 3.8KW), torque outputs (0.637N·m to 15N·m), and rotational speeds (1000rpm to 3000rpm). The 2500-line optical encoder ensures reliable motion feedback, while the RS485 communication interface enables flexible connectivity with industrial control systems—making it ideal for applications such as CNC machinery, automated production lines, robotics, and precision motion control equipment.
Product parameters
|
Flange |
Voltage |
Power |
Specification and model |
Price |
|
60 Flange |
220V |
200W |
60ST-M00630 |
114 |
|
220V |
400W |
60ST-M01330 |
114 |
|
|
220V |
600W |
60ST-M01930 |
125 |
|
|
80 Flange |
220V |
400W |
80ST-M01330 |
121 |
|
220V |
750W |
80ST-M02430 |
121 |
|
|
220V |
730W |
80ST-M03520 |
137 |
|
|
220V |
1KW |
80ST-M04025 |
144 |
|
|
90 Flange |
220V |
750W |
90ST-M02430 |
121 |
|
220V |
730W |
90ST-M03520 |
137 |
|
|
220V |
1KW |
90ST-M04025 |
144 |
|
|
110 Flange |
220V |
1.2KW |
110ST-M04030 |
146 |
|
220V |
1.5KW |
110ST-M05030 |
153 |
|
|
220V |
1.2KW |
110ST-M06020 |
155 |
|
|
220V |
1.8KW |
110ST-M06030 |
155 |
|
|
130 Flange |
220V |
1KW |
130ST-M04025 |
145 |
|
220V |
1.2KW |
130ST-M04030 |
145 |
|
|
220V |
1.3KW |
130ST-M05025 |
150 |
|
|
220V |
1.5KW |
130ST-M06025 |
152 |
|
|
220V |
1.8KW |
130ST-M06030 |
152 |
|
|
220V |
2KW |
130ST-M07725 |
159 |
|
|
220V |
1KW |
130ST-M10010 |
180 |
|
|
220V |
1.5KW |
130ST-M10015 |
180 |
|
|
220V |
2.6KW |
130ST-M10025 |
180 |
|
|
220V |
2.3KW |
130ST-M15015 |
202 |
|
|
220V |
3.8KW |
130ST-M15025 |
257 |
|
|
220V |
3KW |
130ST-M20015 |
310 |
|
|
220V |
3KW |
130ST-M20015 |
410 |
|
|
180 Flange |
220V |
2.6KW |
180ST-M17215 |
475 |
|
220V |
3KW |
180ST-M19015 |
486 |
|
|
220V |
4.5KW |
180ST-M21520 |
507 |
|
|
220V |
4.3KW |
180ST-M27015 |
528 |
|
|
220V |
5.5KW |
180ST-M35015 |
571 |
|
|
220V |
7.5KW |
180ST-M48015 |
741 |
|
|
380V |
3.8KW |
130ST-M15025 |
291 |
|
|
380V |
2.6KW |
180ST-M17215 |
401 |
|
|
380V |
3KW |
180ST-M19015 |
411 |
|
|
380V |
4.5KW |
180ST-M21520 |
433 |
|
|
380V |
4.5KW |
180ST-M21520 |
496 |
|
|
380V |
4.3KW |
180ST-M27015 |
518 |
|
|
380V |
5.5KW |
180ST-M35015 |
560 |
|
|
380V |
7.5KW |
180ST-M48015 |
677 |
|
|
380V |
10KW |
180ST-M48020 |
677 |
