150mm widing 200kg loading ball screw guide rail module HBX150，effective stroke 0-2.5m
Product features

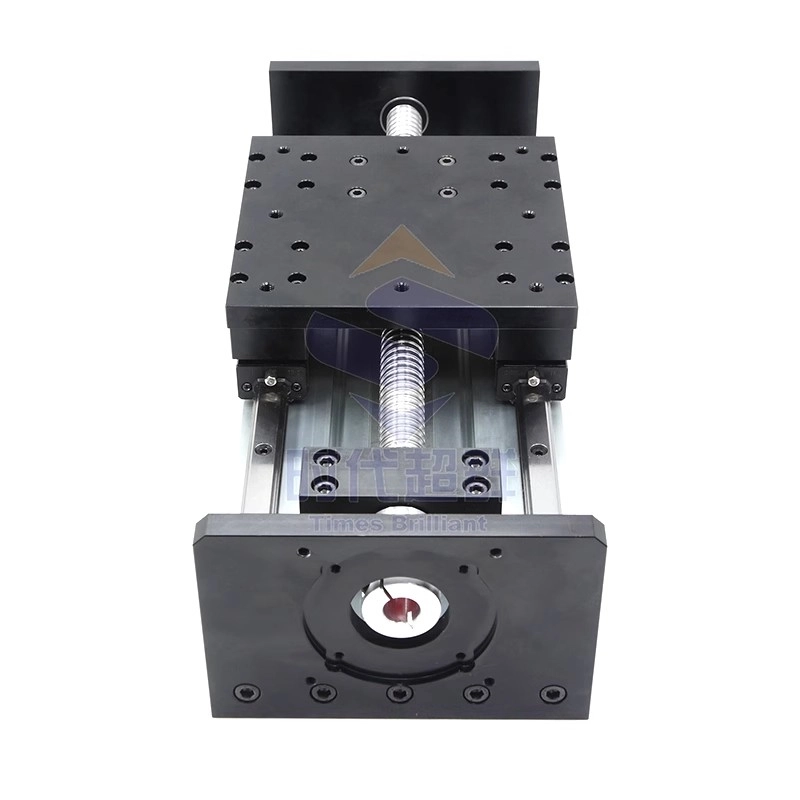

HBX150 Double line ball screw linear guide modle, Made of aluminum alloy, customizable with steel styles, high positioning accuracy of 0.03mm, can be matched with various styles such as 80/86/90/110/130 flanges, stepper/servo/brushless motors, high load of 200kg, higher load supports customization, positioning holes support customization. Support customized XYZ modules.
Product parameters
|
Name |
DES |
|
Material |
Aluminum alloy/stainless steel/iron |
|
Screw |
1605/2005/1610/2010 |
|
Max speed |
200MM/S |
|
Lead/R |
1605/2005-Screw 50mm/s |
|
Max load |
Horizontal load 200KG |
|
Positioning accuracy |
0.03MM |
|
Adapter motor |
86/110/130 |
|
Motor data |
86/110/130 step motor |
|
0EM |
YES |
|
HMR |
Bottam profile M6 of slider M6(can punch |
|
Suggested length |
Effective within 2500MM |
Size
The above is the dimension diagram of an effective stroke of 150MM, equipped with an 80 servo motor
The connecting piece can be customized according to customer requirements
Product application
HBX150 Double line ball screw linear guide mod with stepper motor and control box, slider moves back and forth between 2 limit switches
