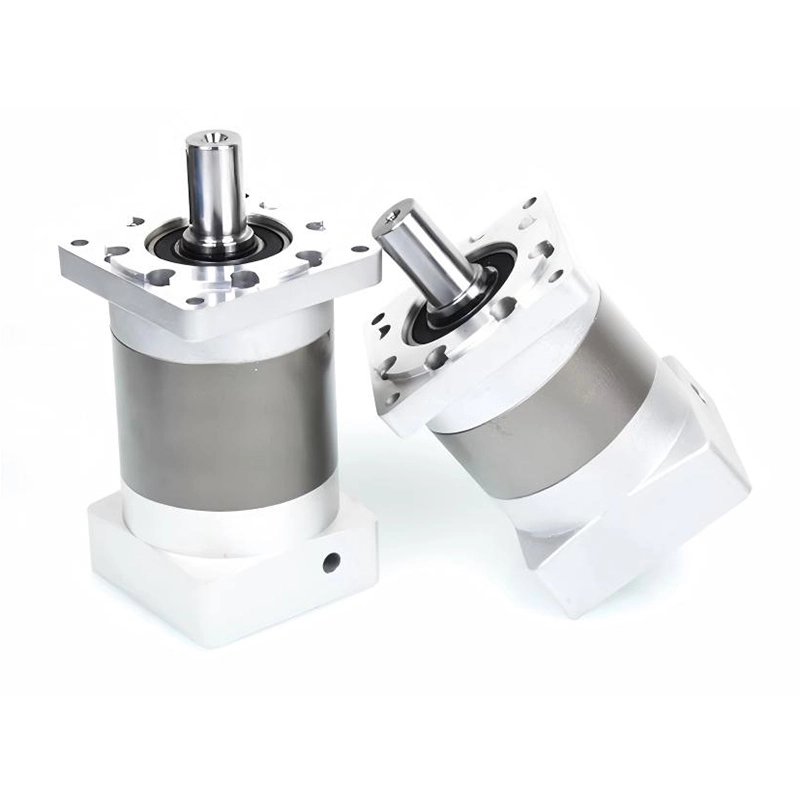

High torque precision planetary gearbox PL57 for nema23 stepper motor with a speed ratio of 3-350 optional
Product features
The internal gears of the PL57 planetary gearbox are made of high-quality low-carbon alloy steel, which undergoes carburizing and quenching, as well as grinding and running-in processes, to achieve high-precision hard tooth surface closed transmission. It features small size, light weight, high load-bearing capacity, long service life, stable operation, low noise, large output torque, large speed ratio, high efficiency and safe performance, along with the unique characteristics of jig power splitting and multi-tooth meshing.
level 1 gearbox
|
technical parameter |
|||
|
Nominal torquet |
See the table on the right for details. |
Max.output torque |
See the table on the right for details. |
|
Rated input speed |
3000rpm |
Max.input speed |
8000rpm |
|
Max.radial force |
400N |
Speed 100rpm, Axial length 1/2 stress |
|
|
Max.axial force |
300N |
Speed 100rpm, Axial length 1/2 stress |
|
|
Maximum efficiency |
96% |
Operating temp |
-25°~ +90° |
|
Installation method |
arbitrarily |
Lubrication mode |
Permanent lubrication |
|
Weight |
1.1Kg |
Average life span |
20000h |
|
Protection level |
IP65 |
Flange accuracy |
DIN 42955-R |
|
Standard backlash |
≤8arcmin |
Precise backlash |
|
|
Key standard |
Round common flat key（ A ）GB1096-79 |
||
|
Gear precision grade |
6 GB/T10095-2008 |
||
|
Motor power |
57 stepper motor power |
||
|
Motor dimensions |
φ8×30/φ38.1×3/4-φ4.5-φ66.7 |
||
level 2 gearbox
|
technical parameter |
|||
|
Nominal torquet |
See the table on the right for details. |
Max.output torque |
See the table on the right for details. |
|
Rated input speed |
3000rpm |
Max.input speed |
8000rpm |
|
Max.radial force |
500N |
Speed 50rpm,Axial length 1/2 stress |
|
|
Max.axial force |
390N |
Speed 50rpm,Axial length 1/2 stress |
|
|
Maximum efficiency |
94% |
Operating temp |
-25°~ +90° |
|
Installation method |
arbitrarily |
Lubrication mode |
Permanent lubrication |
|
Weight |
1.4Kg |
Average life span |
20000h |
|
Protection level |
IP65 |
Flange accuracy |
DIN 42955-R |
|
Standard backlash |
≤8arcmin |
Precise backlash |
|
|
Key standard |
Round common flat key（ A ）GB1096-79 |
||
|
Gear precision grade |
6 GB/T10095-2008 |
||
|
Motor power |
57 stepper motor power |
||
|
Motor dimensions |
φ8×30/φ38.1×3/4-φ4.5-φ66.7 |
||
level 3 gearbox
|
technical parameter |
|||
|
Nominal torquet |
See the table on the right for details. |
Max.output torque |
See the table on the right for details. |
|
Rated input speed |
3000rpm |
Max.input speed |
8000rpm |
|
Max.radial force |
500N |
Speed 50rpm,Axial length 1/2 stress |
|
|
Max.axial force |
390N |
Speed 50rpm,Axial length 1/2 stress |
|
|
Maximum efficiency |
94% |
Operating temp |
-25°~ +90° |
|
Installation method |
arbitrarily |
Lubrication mode |
Permanent lubrication |
|
Weight |
1.4Kg |
Average life span |
20000h |
|
Protection level |
IP65 |
Flange accuracy |
DIN 42955-R |
|
Standard backlash |
≤8arcmin |
Precise backlash |
|
|
Key standard |
Round common flat key（ A ）GB1096-79 |
||
|
Gear precision grade |
6 GB/T10095-2008 |
||
|
Motor power |
57 stepper motor power |
||
|
Motor dimensions |
φ8×30/φ38.1×3/4-φ4.5-φ66.7 |
||
Product details
Low-carbon synthetic steel, hard and wear-resistant
Synthetic steel is more durable and extends the service life of the reducer
Precision hobbing technology, incomparable to powder metallurgy parts
Planet carrier
Integrated two-stage cage design
Transmission efficiency: 94%-96%
Planetary bearing
Fully enclosed overlapping series bearing with IP65-grade treatment using fully synthetic oil
Low noise
Bearings with small clearance are adopted and the bearing caps are specially treated for damping. Imported lubricating oil ensures quiet operation and lower noise.
High torque
Self-developed and molded 304 stainless steel gaskets are adopted.
Internal upgrades result in superior rigidity and wear resistance.
