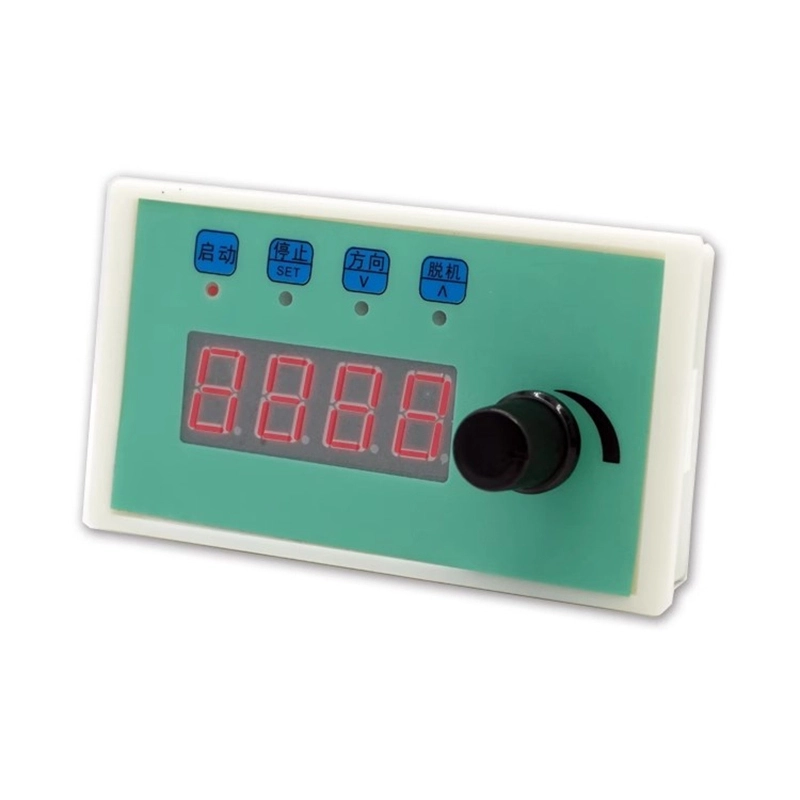

Single axis stepper/servo motor controller CS10-3, pulse control, potentiometer speed regulation

Product features

CM40 1-4 axis stepper/servo motor programmable controller,It is equipped with 3.5 inch color screen, Chinese/English Switch, and USB connection. Boot picture can be set as pictures or company name as you will. It is highly reliable, highly accurate, low noise and easy to use.

Operation Manual

Display instructions: in the running or stopped state, the digital tube displays the current speed value, unit revolution/minute.

Displays the parameter code or parameter value of the Settings in the Settings status

Parameter setting: in the stop state, press button in a long time, appears ACC, then press the key  to appear the parameter value of ACC, press  and  to modificate, after modification press  to confirm, return to ACC state, press  then tAb appears, then press again it appears"run", press again, the MODE appears,then press the next parameter, the parameter setting is the same as ACC, and press the button  to exit the parameter setting to the stop state.

ACC acceleration setting (1-99) 1 is the fastest, 99 is the slowest, and the load setting is slow, the default value is 5.

TAb Sub division Settings (1-64) this value should be the same as the drive settings according to the drive Settings, When the setting is consistent, the speed displayed is the actual speed, and the default value is 10

Product features

run setting(0-1): power on,0 means stop, 1 means working.  default 0.

In_ S: 3-pin operation, 4-pin stop input terminal and 2-pin GND connection mode setting (0-4) default value 0

0 port 3 is connected to start, disconnection is stopped, and the direction is reverse for port 4

1 port 3 press to start, then press to stop, the direction is port 4 press 1.  The lower direction is reversed

2 port 3 press start,port 4 press - down to stop

3 port 3 press forward, then press stop,port 4 press reverse, then press stop

4 port 3 is connected to the forward start and disconnection stops;

port 4 is connected to the reverse start and disconnection stops

Run: panel start or external terminal start, operation indicator,

runtime to adjust potentiometer to adjust speed panel stop or external terminals, stop the indicator change direction according to the panel direction or external direction key

Development extension: scalability is very good, the controller can according to user needs to develop the program, users in need can contact with us.

Wiring

Product application
