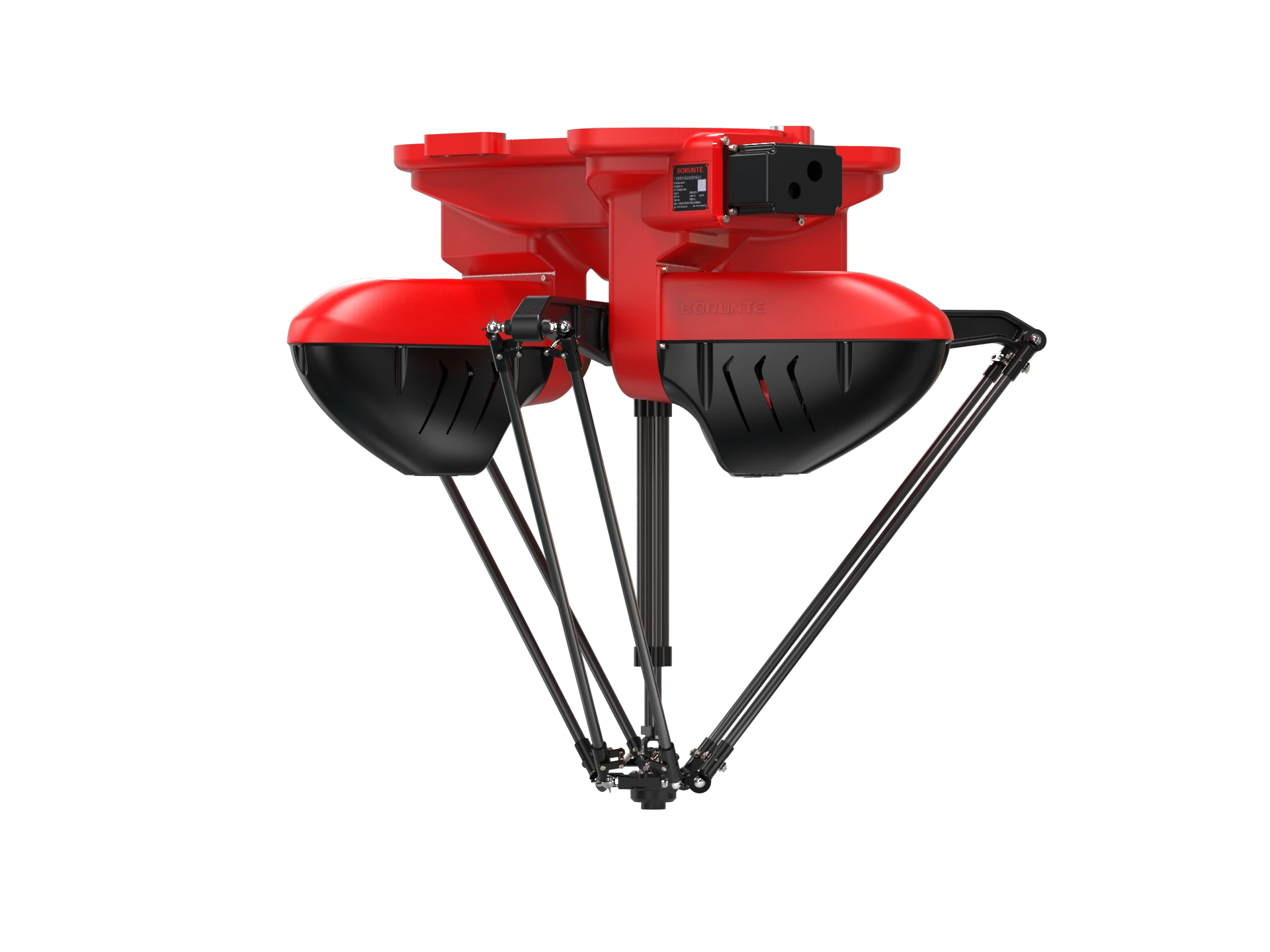

material manipulators 3kg load 1000mm arm span BRTIRPL1003A
Product features
BRTIRPL1003A is the first four axis robot developed by BORUNTE for assembling, sorting, and other application scenarios of light and small scattered materials. It can be paired with vision and has a 1000mm arm span, with a maximum load of 3kg.
● High accuracy：repeated positioning accuracy:±0.1mm
Application of BRTIRPL1003A
(1). Sorting (2) transporting, etc.
Product parameters
|
Model |
BRTIRPL1003A |
||||||
|
Axes |
4 axis |
||||||
|
Loading ability |
3kg |
||||||
|
Repeated positioning accuracy |
±0.1mm |
||||||
|
Angle repeated positioning accuracy |
±0.5° |
||||||
|
Maximum arm span |
1000mm |
||||||
|
Weight |
104kg |
||||||
|
Max speed |
J1 |
609°/s |
J2 |
609°/s |
|||
|
|
J3 |
609°/s |
J4 |
2814°/s |
|||
|
Motion range |
J1 |
-46.7°/+86.6° |
J2 |
-46.7°/+86.6° |
|||
|
|
J3 |
-46.7°/+86.6° |
J4 |
±360° |
|||
|
Maximum rotational torque |
J4 |
\ |
|
|
|||
|
Maximum moment of inertia |
J4 |
\ |
|
|
|||
|
Mounting environment |
Operating temperature： 0℃~40℃ Best temperature：15℃~25℃ Relative humidity：20~80%RH（No condensation） |
Mpa |
0.5~0.7MPa |
||||
|
|
|
Power supply |
220V±10% 50Hz/60Hz |
||||
|
|
|
|
|
||||
|
Core component |
Names |
Operating system |
Brand |
BORUNTE |
|||
|
|
|
Casting body |
|
BORUNTE |
|||
|
|
|
|
BORUNTE |
||||
|
|
|
Reducer |
|
BORUNTE |
|||
|
|
|
Electrical component |
|
BORUNTE |
|||
|
RV Oil content |
None |
||||||
|
Vulnerable parts |
None |
||||||
|
Robot accompanying materials |
USB |
||||||
Dimensional drawing
Product application
BRTIRPL1003A is used in conjunction with visual applications for leather gripping and loading/unloading
