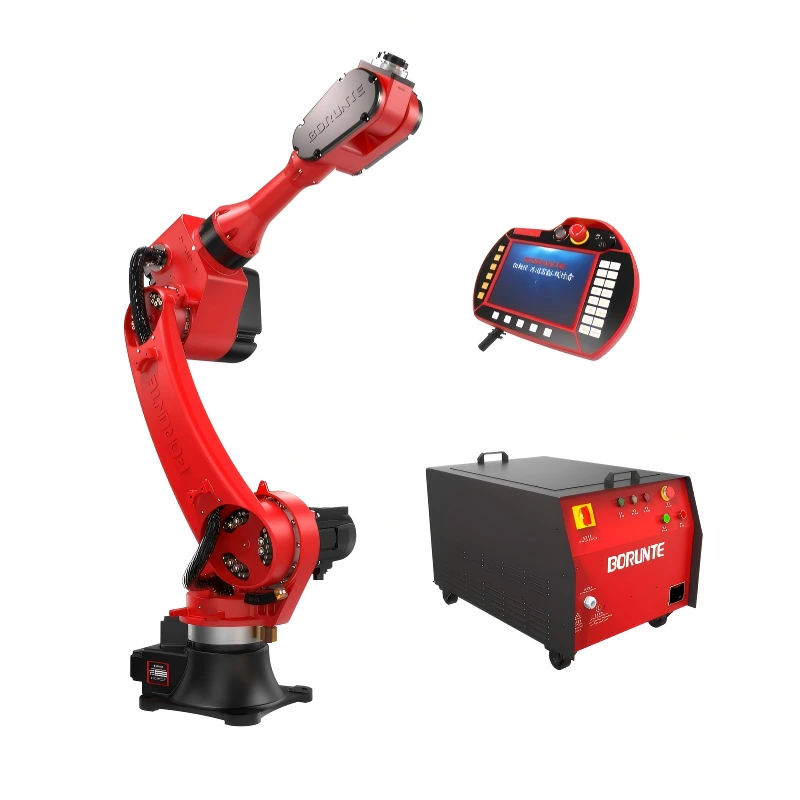

robotic bag palletizer 30kg load 2068mm arm span BRTIRUS2030A
Product features
BRTIRUS2030A is a six axis robot developed by BORUNTE for complex applications with multiple degrees of freedom. Its maximum loading is 30kg, and it has 2068 mm arm span. The six degrees of freedom flexibility can handle the scenes such as plastic injection part taking, machine tool loading and unloading, assembly, and transportation.
● High IP code：Wrist: IP54 Body: IP40
● High accuracy：repeated positioning accuracy: ±0.08mm
Application of BRTIRUS2030A
(1). injection molding (2). stamping (3). transporting (4). loading and unloading, etc.
Product parameters
|
Model |
BRTIRUS2030A |
||||||||||||
|
Axes |
6 axis |
||||||||||||
|
Loading ability |
30kg |
||||||||||||
|
IP code |
Body: IP40 Wrist: IP54 |
||||||||||||
|
Repeated positioning accuracy |
±0.05mm |
||||||||||||
|
Maximum arm span |
2068mm |
||||||||||||
|
Weight |
310kg |
||||||||||||
|
Max speed |
J1 |
102°/s |
J2 |
103°/s |
|||||||||
|
J3 |
123°/s |
J4 |
245°/s |
||||||||||
|
J5 |
270°/s |
J6 |
337°/s |
||||||||||
|
Motion range |
J1 |
±150° |
J2 |
-90°/+70° |
|||||||||
|
J3 |
-55°/+105° |
J4 |
±180° |
||||||||||
|
J5 |
±115° |
J6 |
±360° |
||||||||||
|
Maximum rotational torque |
J4 |
54.1N*m |
J5 |
67.4N*m |
J6 |
60.7N*m |
|||||||
|
Maximum moment of inertia |
J4 |
1.69kg*m2 |
J5 |
1.54kg*m2 |
J6 |
1.5kg*m2 |
|||||||
|
Mounting environment |
Operating temperature： 0℃~40℃ |
Mpa |
0.5~0.7MPa |
||||||||||
|
|
Power supply |
220V±10% 50Hz/60Hz |
|||||||||||
|
|
|
|
|||||||||||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
|||||||||
|
|
Casting body |
|
BORUNTE |
||||||||||
|
|
|
BORUNTE |
|||||||||||
|
|
Reducer |
|
BORUNTE |
||||||||||
|
|
Electrical component |
|
BORUNTE |
||||||||||
|
Oil component |
J1 |
2200ML |
J2 |
1100ML |
J3 |
1100ML |
|||||||
|
J4 |
700ML |
J5 |
/ |
J6 |
/ |
||||||||
|
Vulnerable parts |
Timing belt
|
MBT233090502 Timing belt 450-5MHP-9 bandwidth - 90 teeth | |||||||||||
|
Robot accompanying materials |
USB |
||||||||||||
Dimensional drawing
Product application
BRTIRUS2030A is used for material handling and loading/unloading
