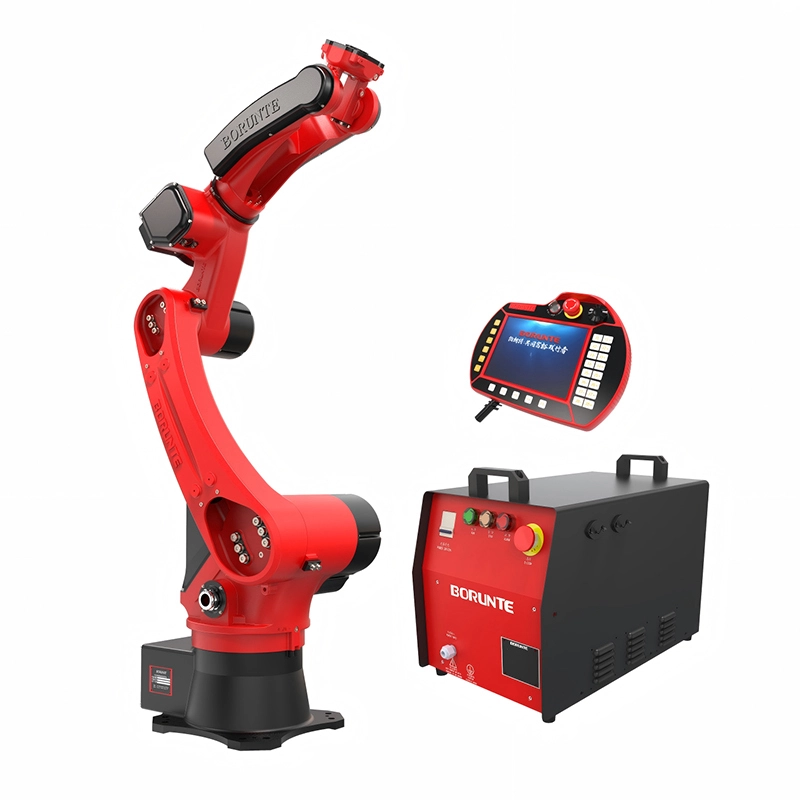

6-axis industrial welding robot BRTIRWD1506A with 1647mm arm span and 6kg loading, mainly suitable for welding
Product features
BRTIRWD1506A is a six axis robot developed by BORUNTE for welding application. The robot has a compact structure, small size, light weight, a maximum load of 6kg, and an arm span of 1647mm. The wrist adopts a hollow structure, making wiring more convenient and movements more flexible.
● High IP code: IP54 Dust-proof and water-proof
● High accuracy: repeated positioning accuracy: ±0.05mm
Application of BRTIRWD1506A
(1). Welding (2). Injection molding (3). Stamping (4). Loading and unloading, etc.
Product parameters
|
Model |
BRTIRWD1506A |
||||||||||||
|
Axes |
6 axis |
||||||||||||
|
Loading ability |
6kg |
||||||||||||
|
IP code |
IP54 Dust-proof and water-proof |
||||||||||||
|
Repeated positioning accuracy |
±0.05mm |
||||||||||||
|
Maximum arm span |
1647mm |
||||||||||||
|
Weight |
166kg |
||||||||||||
|
Max speed |
J1 |
163°/s |
J2 |
149°/s |
|||||||||
|
J3 |
223°/s |
J4 |
169°/s |
||||||||||
|
J5 |
270°/s |
J6 |
398°/s |
||||||||||
|
Motion range |
J1 |
±165° |
J2 |
-100°/+70° |
|||||||||
|
J3 |
±80° |
J4 |
±150° |
||||||||||
|
J5 |
±110° |
J6 |
±360° |
||||||||||
|
Maximum rotational torque |
J4 |
15N*m |
J5 |
25.24N*m |
J6 |
25.563N*m |
|||||||
|
Maximum moment of inertia |
J4 |
0.262kg*m2 |
J5 |
0.542kg*m2 |
J6 |
0.395kg*m2 |
|||||||
|
Mounting environment |
Operating temperature： 0℃~40℃ |
Mpa |
0.5~0.7MPa |
||||||||||
|
|
Power supply |
220V±10% 50Hz/60Hz |
|||||||||||
|
|
|
|
|||||||||||
|
Core components |
Name |
Operating system |
Brand |
BORUNTE |
|||||||||
|
|
Casting body |
|
BORUNTE |
||||||||||
|
|
|
BORUNTE |
|||||||||||
|
|
Reducer |
|
BORUNTE |
||||||||||
|
|
Electrical component |
|
BORUNTE |
||||||||||
|
Oil component |
J1 |
900ML |
J2 |
800ML |
J3 |
400ML |
|||||||
|
J4 |
/ |
J5 |
/ |
J6 |
/ |
||||||||
|
Vulnerable parts |
Timing belt |
MBT233090503 HTD-5M-09 Bandwidth: 89 teeth |
|||||||||||
|
Timing belt |
MBT233090305 HTD-3M-09 Bandwidth: 188 teeth |
||||||||||||
|
Timing belt |
MBT233090306 HTD-3M-09 Bandwidth: 188 teeth |
||||||||||||
|
Robot accompanying materials |
USB |
||||||||||||
Dimensional drawing
Product application
BRTIRWD1506A with seventh axis flange rotary welding
